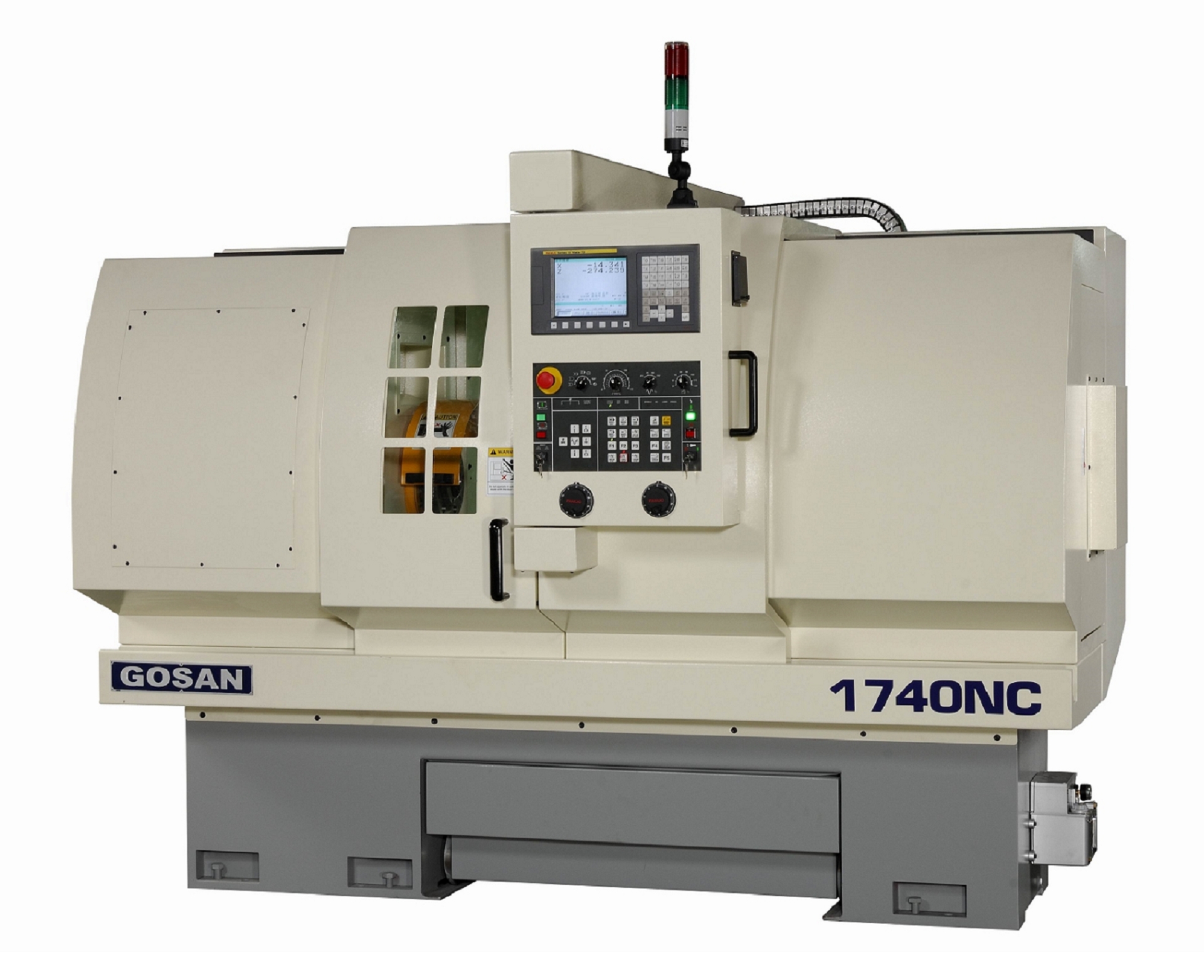

CNC LATHE (Flat-bed type)

Model: 1740NC, 1760NC, 1780NC, 2040NC, 2060NC, 2080NC



FEATURES:

˙FAGOR, FANUC, SIEMENS, SYNTEC, LNC, CENTROID are available.

˙CNC and manual operation.

˙Dual electronic hand-wheels for manual turning.

˙Teach in mode.

˙Integrated PLC.

˙Semi-automatic, automatic (cycle) and part program modes.

˙Rapid traverse.

˙Automatic home searching.

˙3 steps, 10-2000 r.p.m. infinite variable spindle speed.

˙86mm. 3-3/8inch hole through spindles.

˙3-point supported spindle using 2 precision taper roller bearings and 1 ball bearing.

˙All geared headstock, main gears are made from Chromium, Nickel, molybdenum alloy steel and are case hardened and “REISHAUER” ground.

˙Forced spray lubrication system used for headstock.

˙High precision ball-screws.

˙Hardened of bed-way & cross ways meet HB 450.

˙Auto lubrication unit for all slide-ways surface and ball-screws.

˙10HP (7.4kw) Main spindle motor



pElectrical 4 way tool post

pHydraulic tailstock

pHydraulic turret

pHeadstock

pQulick change tool post

pElectrical turret





pElectrical box







BRIEF SPECIFICATION

BRIEF SPECIFICATION

MODEL

1740NC

1760NC

1780NC

2040NC

2060NC

2080NC

NOMINAL SIZE

Height of Center

220 mm 8-5/8 inch

255 mm 10 inch

Swing over Bed

440 mm 17-5/16 inch

510 mm 20 inch

Swing over Cross Slide

235 mm 9 –1/4 inch

305 mm 12 inch

Distance Between Centers

1000 mm   40 in

1500 mm    60 in

2000 mm    80 in

1000 mm   40 in

1500 mm    60 in

2000 mm    80 in

BED

Width of Bedways

330 mm 13 inch

Total Length of Bed

2000 mm  78 in

2510 mm  98 in

3020 mm  118 in

2000 mm  78 in

2510 mm  98 in

3020 mm  118 in

SPINDLE

Spindle nose mounting

D1-8 CAMLOCK

Spindle bore

86 mm 3-3/8 inch

Taper of spindle bore

M.T.#7 (Sleeve M.T.#5)

Range of spindle speeds

High - Middle - Low

2000~240 - 380~45 - 84~10 RPM

Longitudinal travel (Z axis)
(Ball screw 40
x10 C5)

920 mm
36-1/4 in

1430mm
56-1/4 in

1940 mm
76-3/8in

920 mm
36-1/4 in

1430mm
56-1/4 in

1940 mm
76-3/8in

Longitudinal travel (Z axis) for
Hydraulic 8 position turret

870mm

1380mm

1890mm

870mm

1380mm

1890mm

Longitudinal travel (Z axis) for
Hydraulic 8 position turret & 3 jaw chuck 10”

750mm

1260mm

1770mm

750mm

1260mm

1770mm

Longitudinal travel (Z axis) for
Electrical 4 way toolpost

990mm

1490mm

1990mm

990mm

1490mm

1990mm

Longitudinal travel (Z axis) for
Electrical 4 way toolpost & 3 jaw chuck 10”

870mm

1380mm

1890mm

870mm

1380mm

1890mm

Cross slide travel (X axis)
(Ball screw 25
x 5 C5)

280 mm 11 inch

TOOL SLIDE

Total travel of cross slide

280 mm 11 inch

Max. size cutting tool

25 mm 1 inch

TAIL STOCK

Tailstock quill diameter

75 mm 3 inch

Tailstock quill Taper

M.T.#5

Tailstock quill travel

160 mm 6-5/16 inch

MOTOR

Main spindle motor

10HP 7.4 kw

Machine weight

1800 kgs

2000 kgs

2300 kgs

2100 kgs

2300 kgs

2600 kgs

We reverse the right to modify and improve our products.
