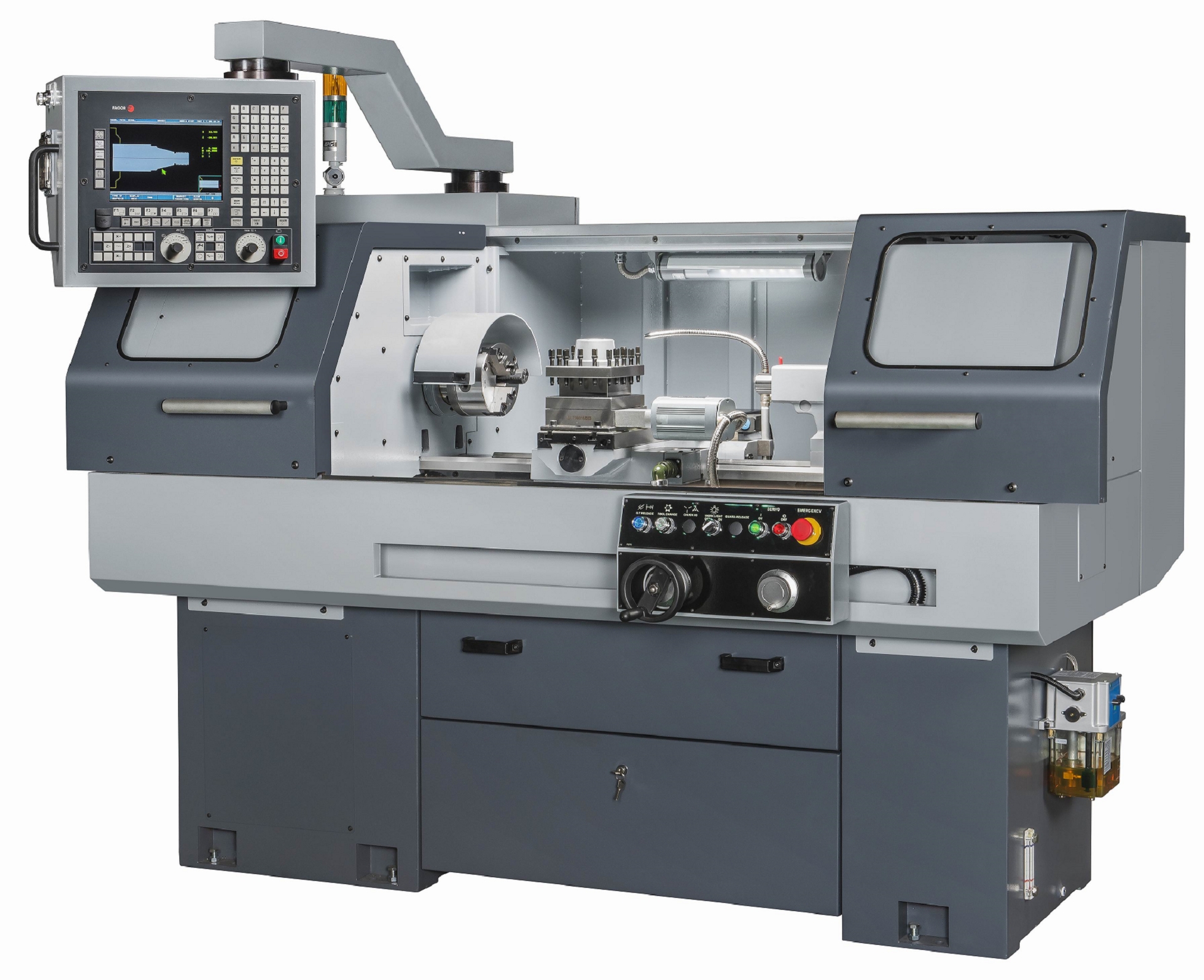

CNC LATHE (Flat-bed type)

Model: 1440NC



FEATURES:

˙FANUC, FAGOR, SIEMENS, SYNTEC control are available.

˙CNC and manual operation.

˙Electronic hand-wheels for manual turning.

˙Teach in mode.

˙Integrated PLC.

˙Semi-automatic, automatic (cycle) and part program modes.

˙Rapid traverse.

˙Automatic home searching.

˙30-2000 R.P.M. infinite variable spindle speed.

˙38mm. 1-1/2inch hole through spindles.

˙2-point supported spindle using 2 precision taper roller bearings.

˙All geared headstock, main gears are made from Chromium, Nickel, molybdenum alloy steel and are case hardened and “REISHAUER” ground.

˙Forced spray lubrication system used for headstock.

˙High precision ball-screws.

˙Hardened of bed-way & cross ways meet HB 450.

˙Auto lubrication unit for all slide-ways surface and ball-screws.

˙5HP 3.5KW Main motor or 7.5HP 5.7kw main servo motor.



HEADSTOCK

˙The headstock is made of high quality cast iron (FC30) all shafts and gears are of high tensile tensil steel and are hardened and ground.

˙3 spindle speeds 30-2000 rpm. Low speed provides High torque output for heavy duty cutting. Hi speed is for finish cutting.

˙Hardened and ground main spindle is supported by precision taper roller bearing.

˙Headstock have inner oil reservoir in which lubrication worked by splashing lubricant.



BED WAY

˙Meehanite cast iron bed is heavily ribbed.

˙The bed ways are induction hardened to HS70 and precision ground.



CARRIAGE

˙Automatic lubrication system continuously supplies lubricating oil to carriage and cross-slide.



TAILSTOCK

˙Tailstock is of rigid construction and features super tight clamp locked by clamp lever.

˙M.T. #3 barrel internal taper provides heavy support for live centers or tip center.

˙The quill is hardened and ground with inches and metric graduations.



		pElectrical box
pChip tray Easily to remove the chip front of the lathe.	pOPERATOR BOX (OPTIONAL) - Dual hand wheels in front of CNC lathe easily to control in manual mode. - Operator box can move smoothly.
pElectrical 4 way toolpost (OPTIONAL)	pHydraulic Tailstock	pQuick change tool post



STANDARD ACCESSORIES:

   1.     CNC control system.

   2.     3 Jaw chuck 6 inch (165mm) with backplate.

   3.     Manual Quick change tool post.

   4.     Steady rest

   5.     Automatic lubrication system

   6.     Coolant pump system

   7.     Electrical hand wheel

   8.     Work lamp

   9.     Signal lamp

10.     Safety guard

11.     Toolbox with tools.

12.     Center sleeve

13.     Two dead centers

14.     Camlock spindle wrench.

15.     Oil gun

16.     Optional manual and part list



OPTIONAL ACCESSORIES:

   1.     3-jaw strong scroll chuck

   2.     4-jaw independent chuck

   3.     Face plate

   4.     Follow rest

   5.     Electrical 4 way tool post

   6.     Live center M.T.#3.

   7.     Drilling chuck ½in. (13mm)

   8.     Hydraulic chuck system 3 jaw 6" chuck

   9.     Hydraulic tailstock

10.     Transformer

11.     CE Standard Equipment
